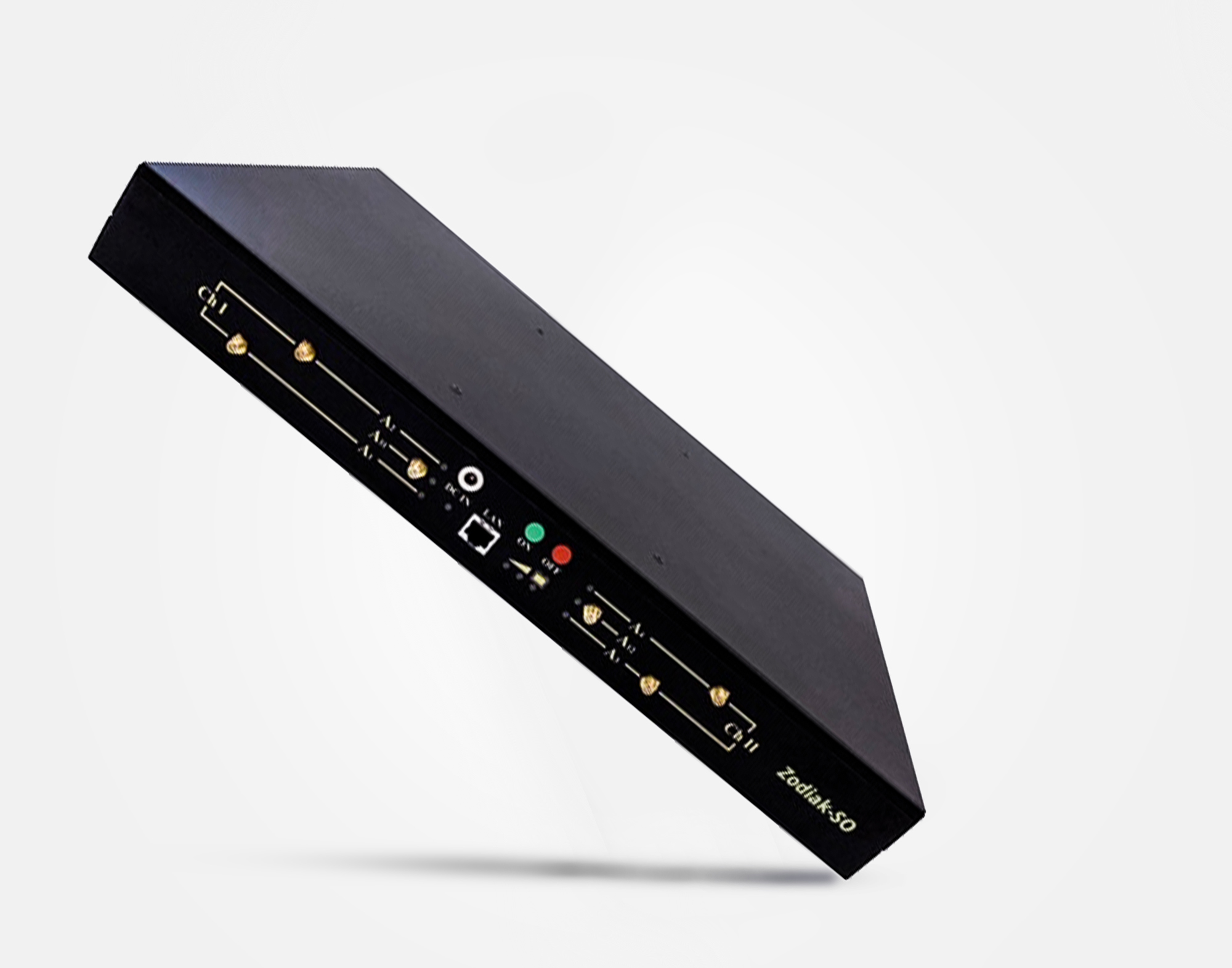

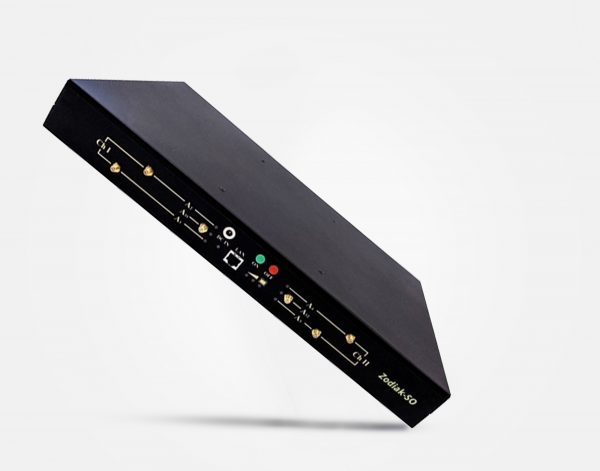

Zodiak-SO
ZODIAK The most advanced radio monitoring solution for 24/7, periodical and tactical spectrum analysis and TSCM illegal transmissions detection and localization.
The best hardware solution to be bundled with RadioInspector software to perform all of the following functionality:
• Portable and easy to deploy solution for signals detection, analysis and threat localization
• Detection of Frequency hoppong, burst/pulse and low power transmission
• Detection of virtual base stations (imsi cathcers)
• Demodulation of TV signals, both: – digital DVB and — analogue NTSC, PAL, SECAM.
• Identification and demodulation of Wi-FI, Bluetooth, AM, FM, DECT, GSM, UMTS, ZigBee and etc.
• SIGINT. real time IQ signals classification, and automatic digital processing.
• Digital mapping for signals direction finding outdoor with precise GPS positioning
• COMINT. IQ _ProcessPRO appication for IQ stream recording post-processing
• Voice demodulation of non-encrypted Tetra, APCO (P25), DMR, DRM
| Frequency range | 9 kHz-30 GHz 9 kHz-9 GHz (Zodiak-SO9) |
| Function | Dual-channel transportable/stationary complex radio monitoring and digital signal analysis |
| Maximum tuning speed | 4700 MHz/sec (RBW 10 kHz) |
| Unique features | Complex with two independent identical radio receiving paths operating in synchronous and asynchronous modes |
| Common features | High quality radio path. Radioinspector program management. More opportunities for digital analysis and signal processing. The ability to work around the clock (24/365) |
| Recording and analysis band of IQ data | 0.256-8 MHz (without recording time limit) |
| Type of computer connection interface | LAN 1 Gb/s |
| Availability and type of battery and time of autonomic operation | Yes, LiFePO4 at least 4 hours |
